Catnic CG90/100 100mm Cavity Wall Lintel

Catnic CG90/100 100mm Cavity Wall Lintel is a galvanised steel lintel designed for cavity walls with a cavity width between 90mm and 105mm. It supports inner leaves of 100–115mm and outer leaves of 100–102mm.

Built for standard duty applications, it delivers dependable performance in domestic and light commercial structures. Coverage spans from 750mm to 3600mm. Unit weight ranges from 4,590g to 47,230g depending on length.

Key Features

• Galvanised steel construction for corrosion resistance
• Designed for 90–105mm cavity walls
• Supports inner leaf: 100–115mm; outer leaf: 100–102mm
• Standard duty load-bearing specification
• Lengths range from 750mm to 3600mm
• Weight per unit: 4,590g to 47,230g
• Manufacturer: Catnic

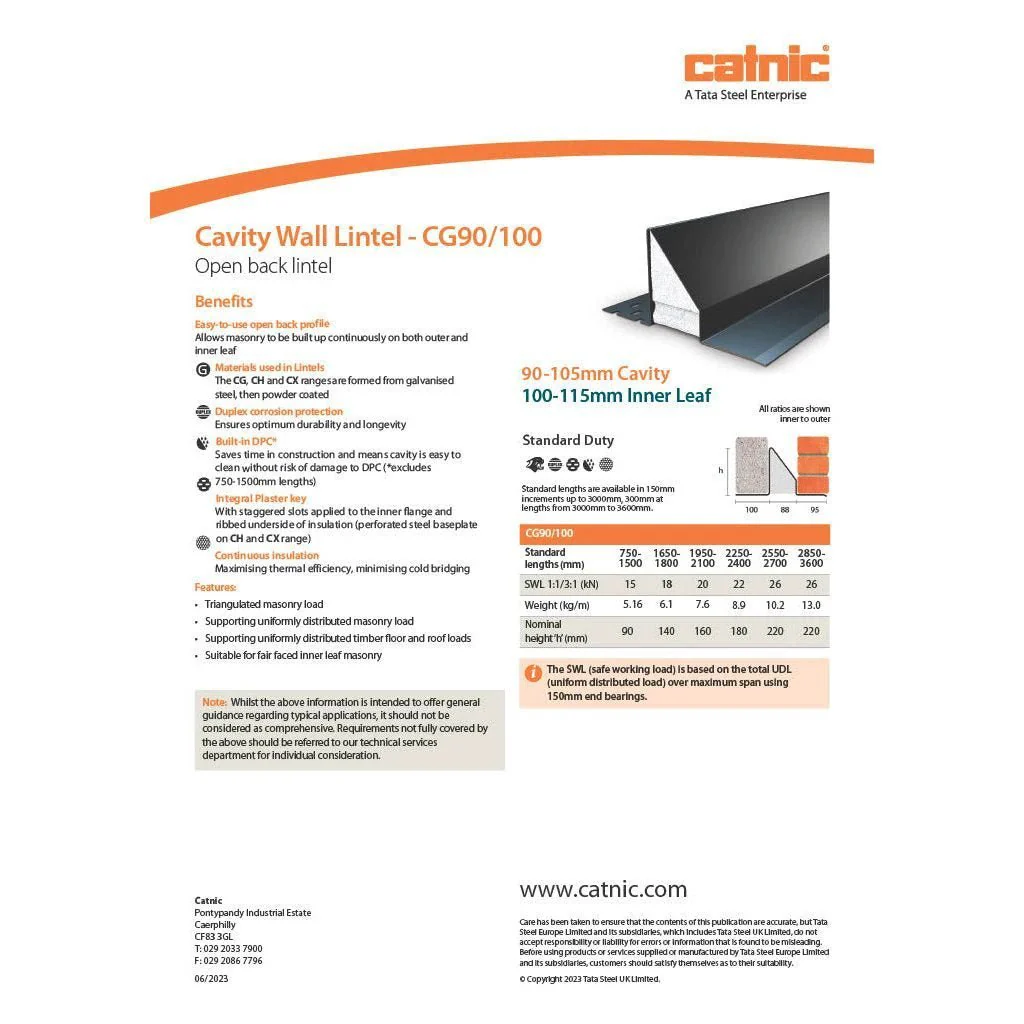

• Datasheet

Installation and Use

• Nominal 150mm End Bearings: For optimal load distribution and stability, a minimum of 150mm end bearing is recommended on both sides.

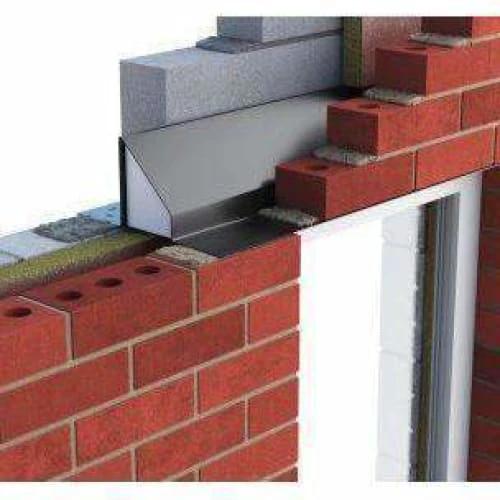

• Simultaneous Leaf Elevation: Both inner and outer leaves can be raised together, simplifying the installation process.
• Block Course Requirement: Prior to the installation of flooring or roof elements, ensure one course of blockwork is laid for enhanced structural performance.
