Catnic CH90/100 100mm Heavy Duty Cavity Wall Lintel

Catnic CH90/100 100mm Heavy Duty Cavity Wall Lintel is a galvanised steel lintel for cavity wall constructions. It supports heavy-duty loads across cavity widths from 90mm to 105mm, with inner and outer leaves of 100–115mm and 100–102mm, respectively.

Each unit is corrosion-resistant and designed for durability in residential and commercial builds. Depending on the length, average lintel weight ranges from 10,120g to 33,720g. Coverage varies by span, up to 2400mm with 150mm end bearings.

Key Features

• Galvanised steel construction for long-lasting corrosion resistance
• Suitable for 90–105mm cavity walls
• Supports inner leaf of 100–115mm and outer leaf of 100–102mm
• Load-bearing for heavy-duty applications
• Manufacturer: Catnic
• Weight range: approx. 10.12kg to 33.72kg
• Spans available: 900mm to 2400mm in 150mm increments

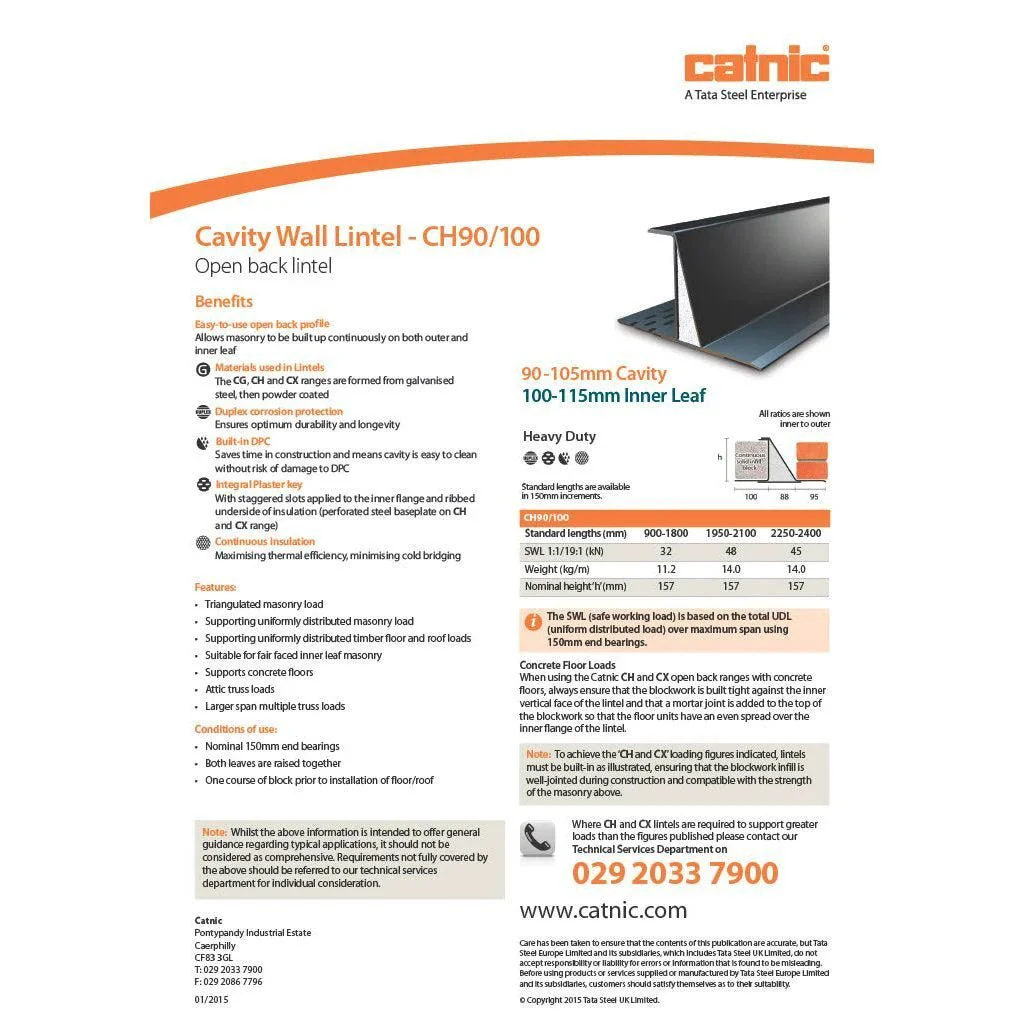

• Datasheet
