$13.62The Story

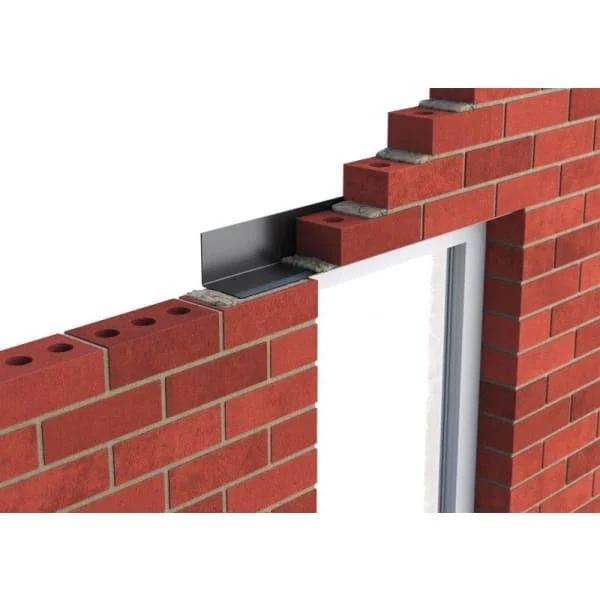

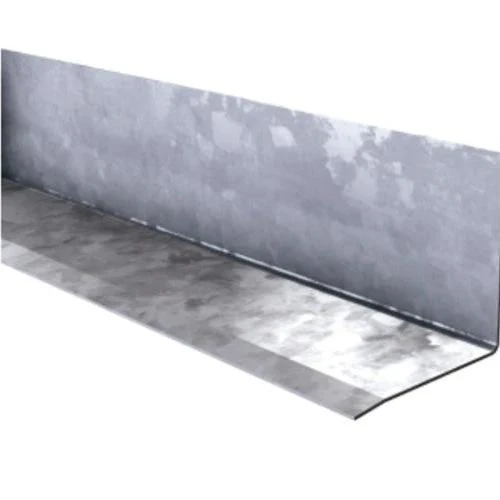

Catnic ANG Lintel Single Leaf Steel is a standard duty lintel for angled single leaf external masonry walls. It supports spans between 900mm and 3900mm and is suitable for 100–102mm brickwork. Lintels up to 2400mm are galvanised, while 2550mm and longer are black powder-coated for enhanced weather protection.
The steel is corrosion-resistant and complies with BS EN 845-2 standards. A 3000mm length weighs approximately 21,810g and is rated for loads up to 15kN using 150mm end bearings.
Key Features
- For angled single leaf external wall builds
- Span range: 900mm – 3900mm
- Galvanised finish up to 2400mm; powder-coated black 2550mm and above
- Standard duty load rating up to 15kN
- Compatible with 100–102mm outer leaf brickwork
- Steel weight (3000mm): approx. 21.81g
- BS EN 845-2 performance certified
- Integral corrosion protection coating
- Manufacturer: Catnic

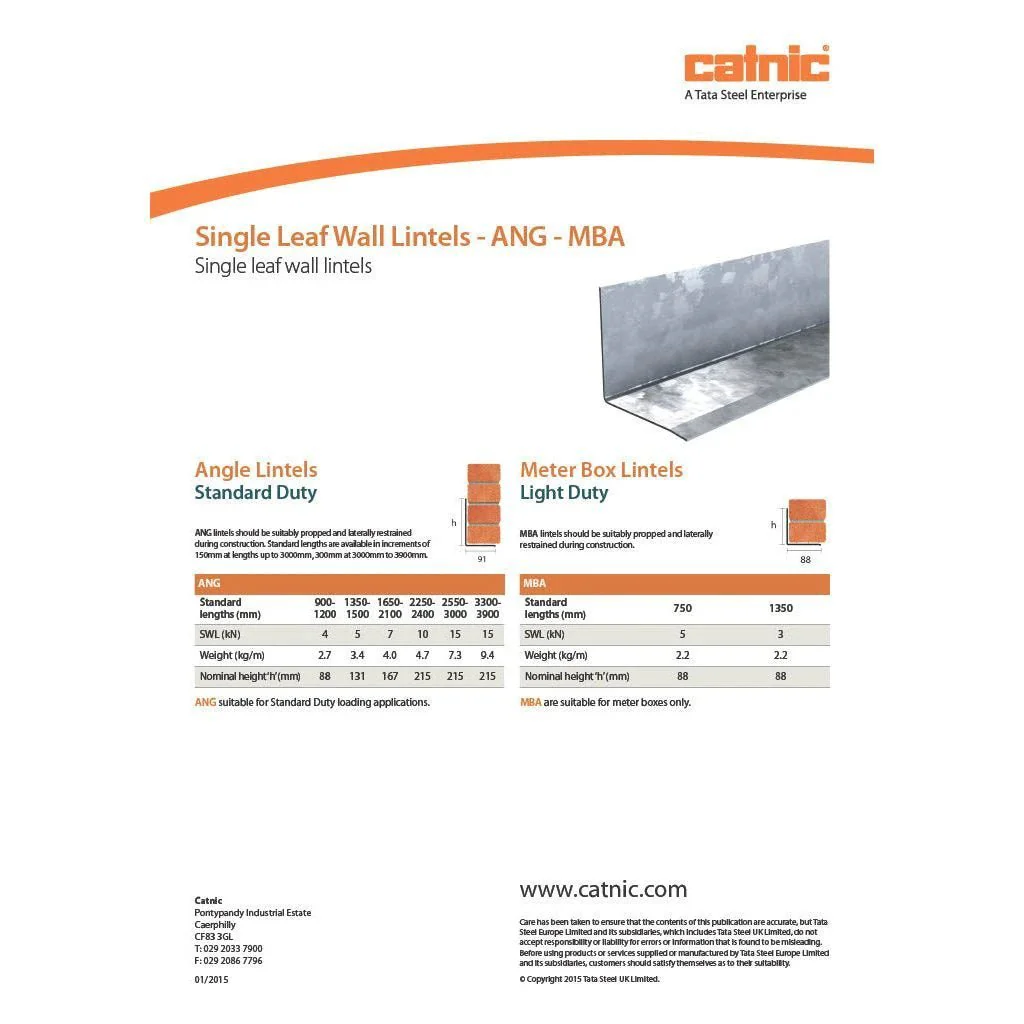

- Datasheet
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Catnic ANG Lintel Single Leaf Steel is a standard duty lintel for angled single leaf external masonry walls. It supports spans between 900mm and 3900mm and is suitable for 100–102mm brickwork. Lintels up to 2400mm are galvanised, while 2550mm and longer are black powder-coated for enhanced weather protection.
The steel is corrosion-resistant and complies with BS EN 845-2 standards. A 3000mm length weighs approximately 21,810g and is rated for loads up to 15kN using 150mm end bearings.
Key Features
- For angled single leaf external wall builds
- Span range: 900mm – 3900mm
- Galvanised finish up to 2400mm; powder-coated black 2550mm and above
- Standard duty load rating up to 15kN
- Compatible with 100–102mm outer leaf brickwork
- Steel weight (3000mm): approx. 21.81g
- BS EN 845-2 performance certified
- Integral corrosion protection coating
- Manufacturer: Catnic
- Datasheet
