Catnic CN50C MBA Steel Lintel Single Leaf Wall

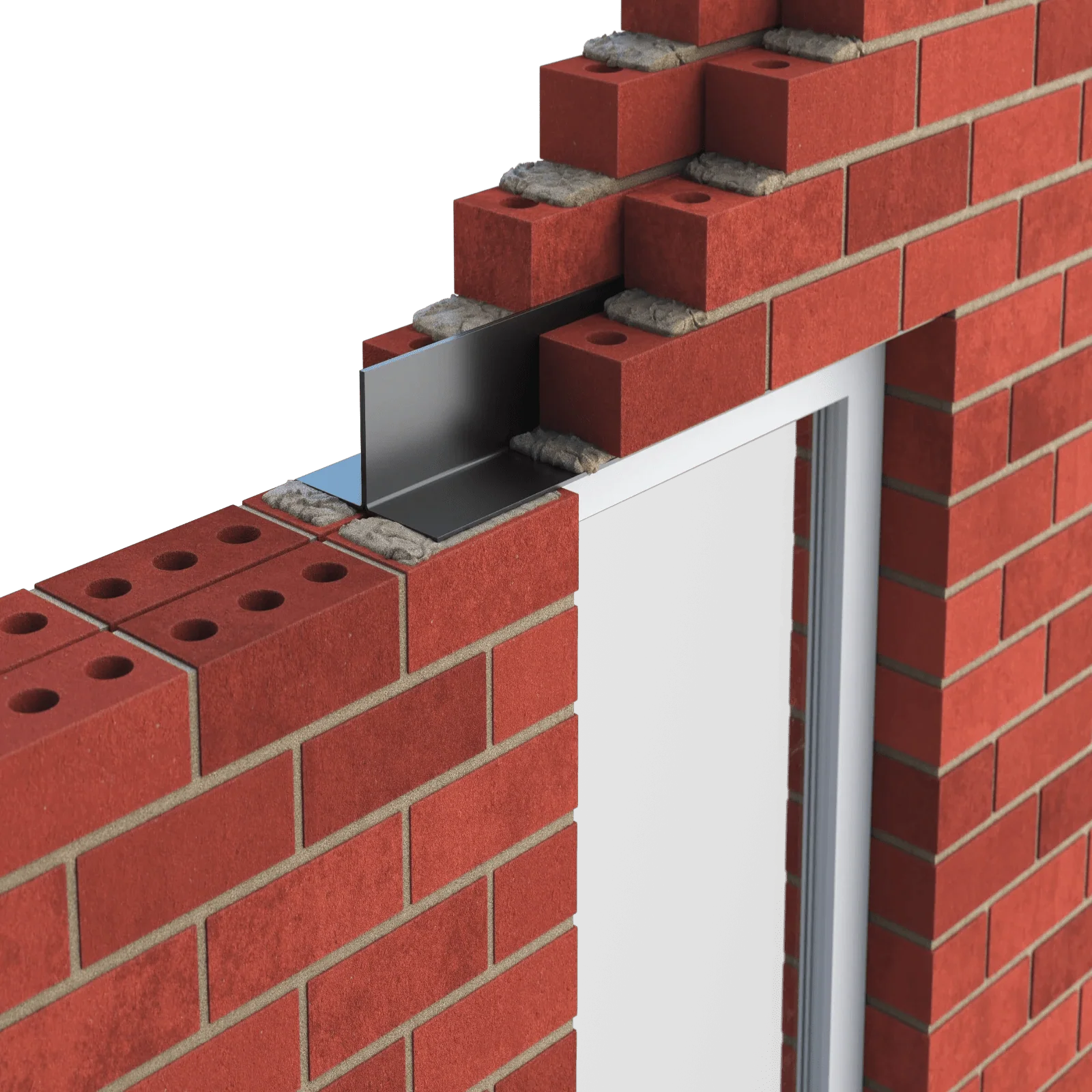

Catnic CN50C MBA Steel Lintel Single Leaf Wall is designed for external solid wall applications with an outer leaf of 200–215mm and no cavity. It meets standard duty load requirements and is available in lengths from 900mm to 1800mm. Made from galvanised steel, the CN50C offers durable performance for masonry support.

With a nominal height of 91mm and a consistent Safe Working Load (SWL) of 10kN across all sizes, it provides reliable strength for single leaf constructions. The lintel’s weight ranges from 7.71kg to 15.43kg depending on the length selected.

Key Features

• Standard duty galvanised steel lintel for external solid walls
• Outer leaf thickness: 200–215mm
• No cavity or inner leaf required
• Safe working load (SWL): 10kN
• Available lengths: 900mm to 1800mm
• Nominal height: 91mm
• Weight: 7.71kg to 15.43kg
• 150mm end bearings required for rated load performance
• Manufacturer: Catnic

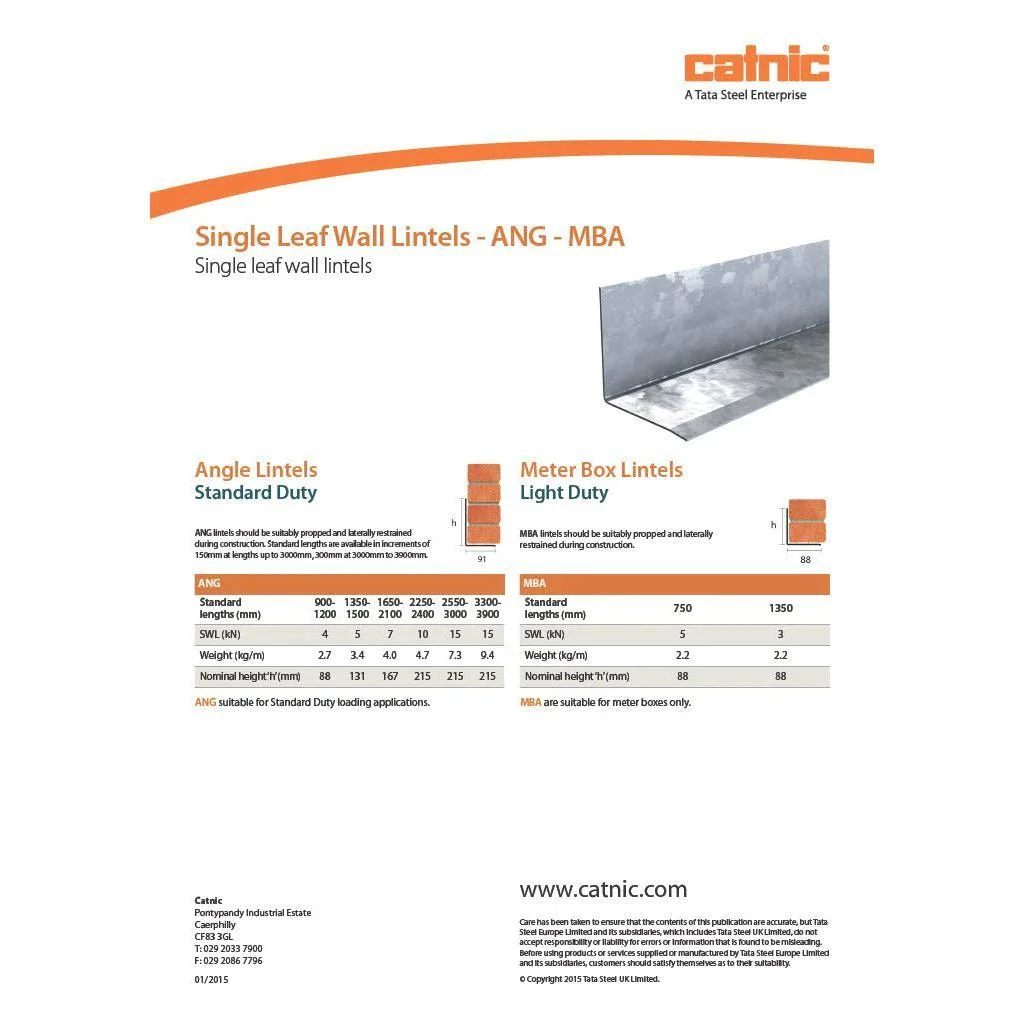

• Datasheet

Standard length are available only in 900mm, 1200mm, 1350mm, 1500mm and 1800mm.
